Home Solar System Dc Ac 24v 220v 2kva Solar Power Inverter
Product name : Home Solar System Dc Ac 24v 220v 2kva Solar Power Inverter
Product No. : Home Solar System Dc Ac 24v 220v 2kva Solar Power
Price : Home Solar System Dc Ac 24v 220v 2kva Solar Power
             [Next Product]→
Online Inquiry         Email Us

  Details:

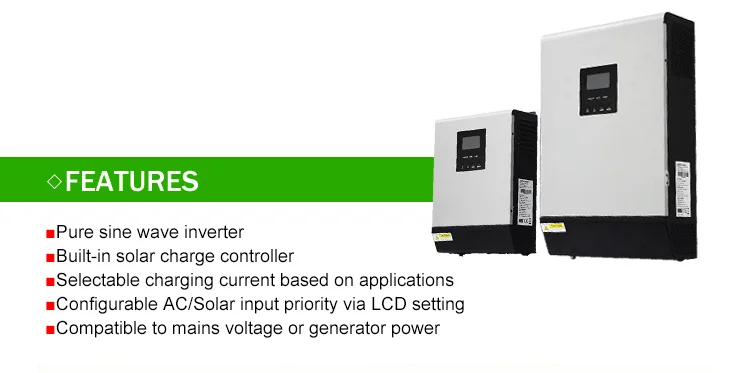

 Product Description
  • pure sine wave inverter
  • Selectable charging current based on applications
  • Configurable AC/Solar input priority via LCD setting
  • Compatible to mains voltage or generator power
  • Parallel operation with up to 6 units only available for 4KVA/5KVA
  • Auto restart while AC is recovering
  • Overload and short circuit protection
  • Smart battery charger design for optimized battery performance
  • Cold start function
  • Optional Remote Control Panel available



Specifications

Model PH18-1000 PH18-2000 PH18-3000 PH18-4000 PH18- 5000
RATED POWER 1000VA/800W 2000VA/1600W 3000VA/2400W 4000VA/3200W 5000VA/4000W
INPUT
Voltage 230 VAC

Selectable

Voltage Range

170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
Frequency Range 50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage  Regulation (Batt. Mode) 230 VAC ± 5%
Surge Power 2000VA 4000VA 6000VA 8000VA 10000VA
Efficiency (Peak) 90% 93%
Transfer Time 10 ms (For Personal Computers) ; 20 ms (For Home Appliances)
Waveform Pure sine wave
BATTERY
Battery Voltage 12 VDC 24 VDC 48 VDC
Floating Charge Voltage 13.5 VDC 27 VDC 54 VDC
Overcharge Protection 15 VDC 30 VDC 60 VDC
SOLAR CHARGER & AC CHARGER
Maximum PV  Open Circuit Voltage 40VDC 60VDC 105VDC
Power Consumption 1 W 2 W 2 W
Solar Charge Current 50A
AC Charge Current 10 A or 20 A 20 A or 30 A 60 A
Charge Current 50 A 110 A
PHYSICAL

Dimension

D*W*H (mm)

95*240*316 100*272*355 120*295*468
Net Weight (kgs) 5 6.4 6.9 9.8 9.8
OPERATING ENVIRONMENT
Humidity 5% to 95% Relative Humidity(Non-condensing)
Operating Temperature 0℃ - 55℃
Storage Temperature

 -15℃ - 60℃
